The support row follows the returning wall. A windowed occupied tier separates it from the projecting upper corner. This is enough to join the two studies by eye; it does not establish a measured transform or the hidden signed-entrance connection.
Compare photograph and model · Whole joined model · Blender · Assumptions
Field 15 · Support heads → occupied tier → overhang; top cropped by the original camera.

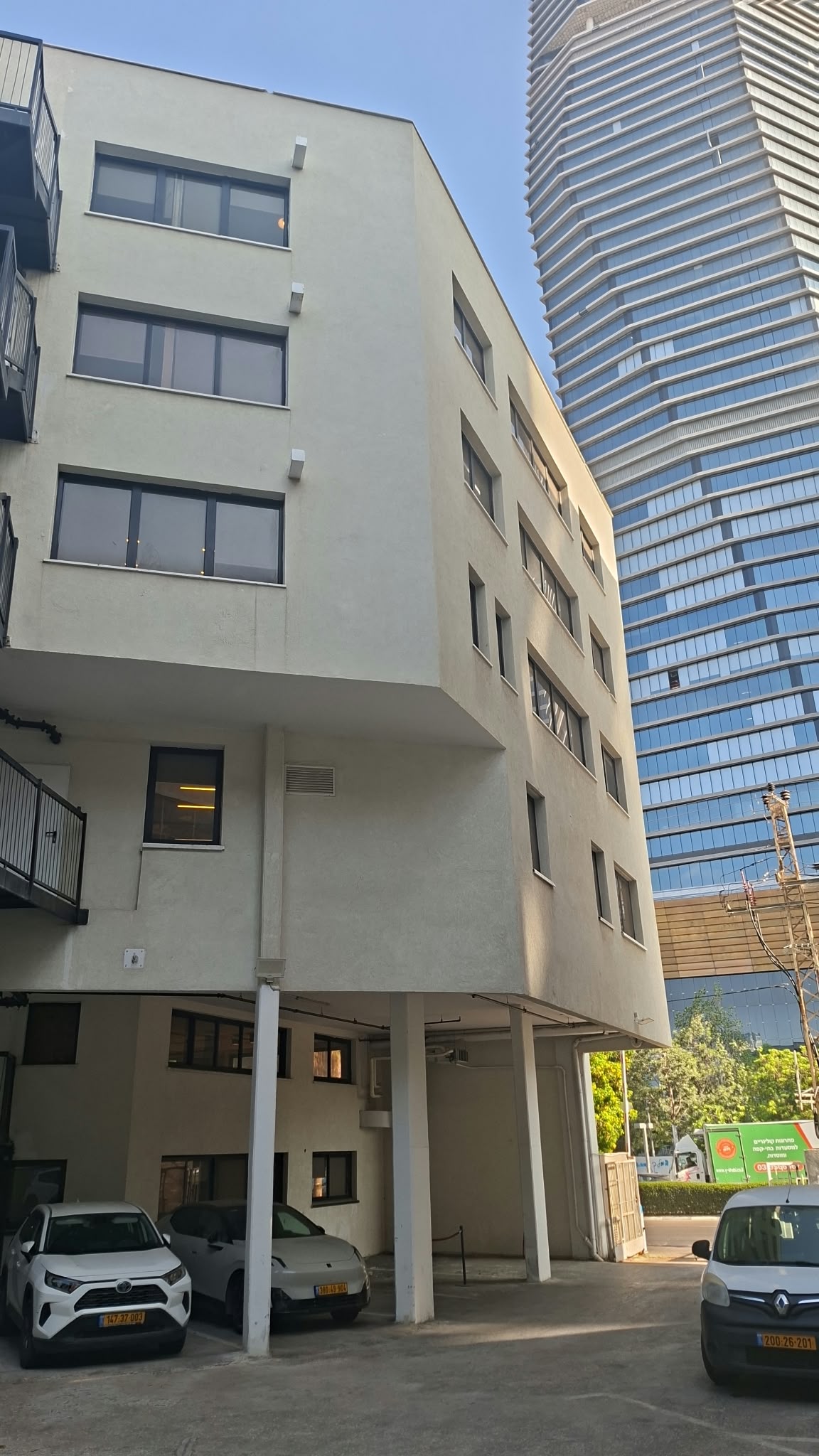

Field 16 · Complete broad upper stack and the same lower connection in one frame.

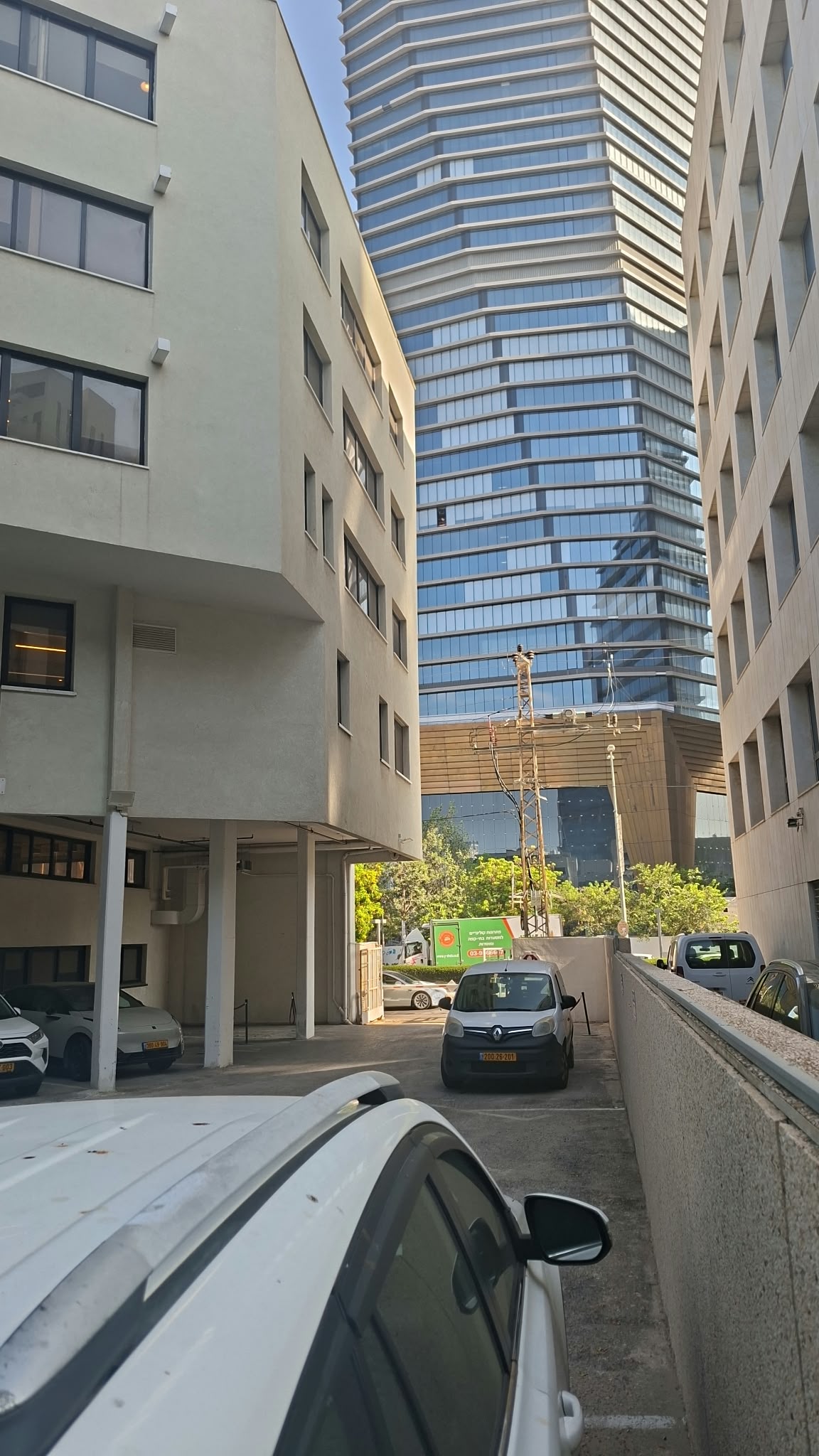

Field 19 · Gate-side direction and lower return apertures corroborate the face map.What changed
| Photographed relationship | Construction choice |
|---|
| Uprights follow the returning side | Rigid quarter turn of the support study; its scale and section geometry retained. |
| Windowed tier between two undersides | Two partial wall planes with four true openings, 3.7 assumed units high. |
| Broad upper face projects beyond lower tier | Visible underside, 1.2 assumed units deep; no hidden slab volume. |
The original six upper windows are translated intact. Two old short support-context strips are replaced here by the observed tier; their cut extents never established a whole face correspondence. Both historical studies remain unchanged.
What the comparison means
Before shows the original surfaces in this proposed alignment, with the connection absent. It is a comparison layout, not a previous joined release. Numerical placement, equal arbitrary scale, right angles, recess depths and relative heights are all by-eye drafting assumptions.
Original support study · Original upper-corner study
Still open
The stair remains a constructible next step. Farther upper windows, shaded ground windows, ground variation and hidden surfaces remain omitted. MI-01/02/03 still concern the entrance relationship; this assembly has no entrance or city registration.
